SCC115060211 SmartSolar MPPT 150/60-Tr Solar Charge Controller

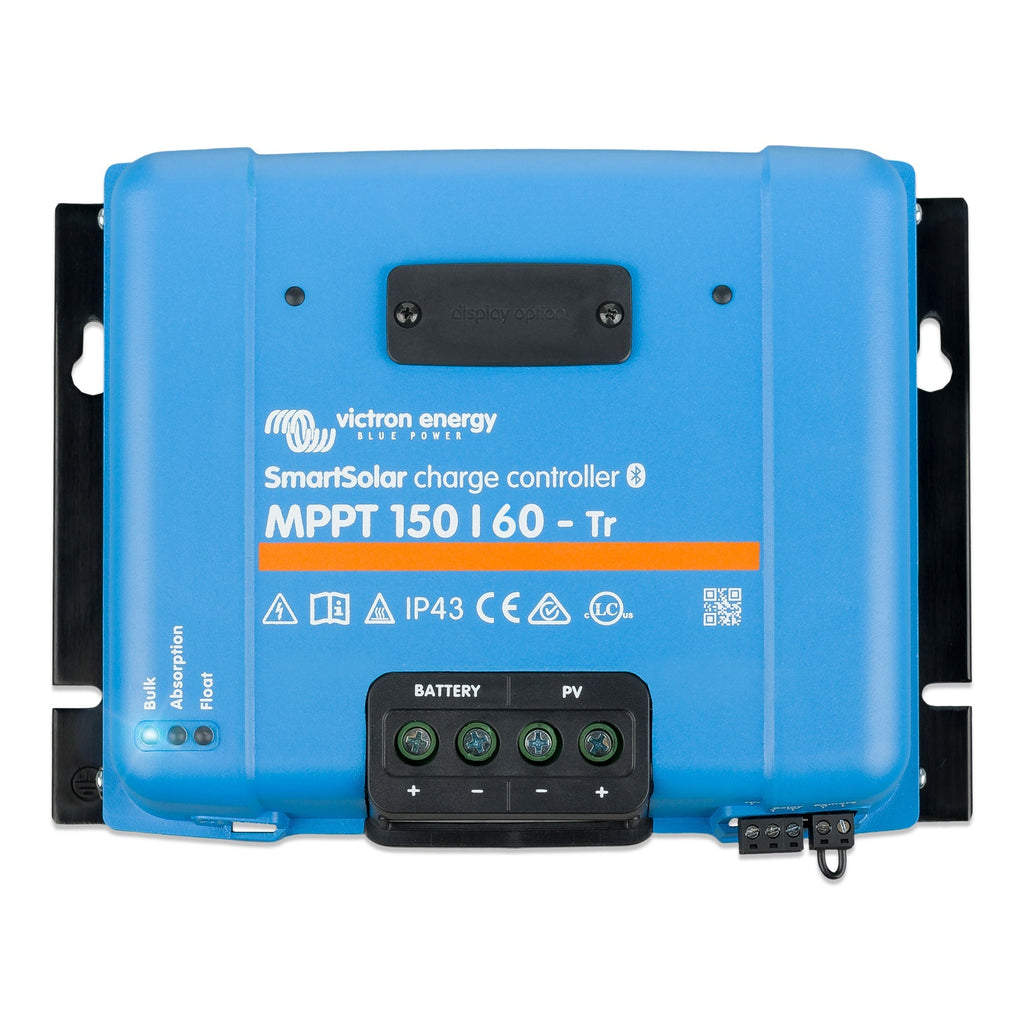

Victron SmartSolar MPPT 150/60-Tr Solar Charge Controller

The Victron SCC115060211 SmartSolar MPPT 150/60-Tr is a 60A MPPT solar charge controller with a maximum PV open-circuit voltage of 150V. It supports 12V, 24V, 36V, and 48V battery systems, uses screw-terminal (Tr) PV connections, and includes built-in Bluetooth for configuration and monitoring with VictronConnect.

Key Features

• 150V maximum PV open-circuit voltage
• 60A maximum battery charge current
• 12/24/36/48V battery support — 12/24/48V auto-select; 36V manual selection
• Built-in Bluetooth — configure and monitor with VictronConnect
• VE.Direct communication
• Tr screw terminals for PV wiring
• Peak efficiency: 98%

Specifications

• Product number: SCC115060211
• Maximum PV open-circuit voltage: 150V
• Maximum charge current: 60A
• Battery voltage: 12/24/36/48V
• Communication: Bluetooth Smart, VE.Direct
• PV connection: Screw terminals (Tr)

Ships from Thunder Battery — Canada's trusted Victron Energy dealer.
