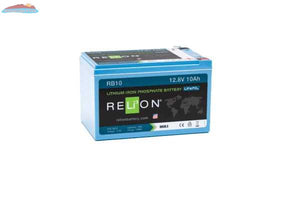

RELiON RB10- 12V 10Ah Lithium Deep Cycle Battery
Lakehead Inkjet & Toner
$195.21
10Ah@20hr, 4000+ cycles, 5 years warranty
DATA SHEET
DOWNLOAD PDF|
ELECTRICAL SPECIFICATIONS |
|
|---|---|
| Nominal Voltage | 12.8 V |
| Nominal Capacity | 10 Ah |
| Capacity @ 25A | 24 min |
| Energy | 128 Wh |
| Resistance | ≤90 mΩ @ 50% SOC |
| Efficiency | 99% |
| Self Discharge | <3% per Month |
| Maximum Modules in Series | 1 |
|
MECHANICAL SPECIFICATIONS |
|
|---|---|
| Dimensions (L x W x H) | 5.9 x 3.9 x 4.0” (151 x 98 x 101 mm) |
| Weight | 3.6 lbs (1.65 kg) |
| Terminal Type | F2 |
| Case Material | ABS |
| Enclosure Protection | IP66 |
| Cell Type | Cylindrical |
| Chemistry | LiFePO4 |
|
DISCHARGE SPECIFICATIONS |
|
|---|---|
| Maximum Continuous Discharge Current | 10 A |
| Peak Discharge Current | 20 A (7.5 s ±2.5 s) |
| BMS Discharge Current Cut-Off | 30 A (±5 A) (10 ±5 ms) |
| Recommended Low Voltage Disconnect | 11 V |
| BMS Discharge Voltage Cut-Off | 8 V (2.0 ±0.08 vpc) (100 ±50 ms) |
| Reconnect Voltage | 10 V (2.5 ±0.1 vpc) |
| Short Circuit Protection | 200-500 µs |
|
CHARGE SPECIFICATIONS |
|
|---|---|
| Recommended Charge Current | 0.5 A - 5 A |
| Maximum Charge Current | 10 A |
| Charge Current 32°F to 14°F (0 to -10°C) | ≤0.1 C |
| Charge Current 14°F to -4°F (-10 to -20°C) | ≤0.05 C |
| Recommended Charge Voltage | 14.2 V - 14.6 V |
| BMS Charge Voltage Cut-Off | 15.6 V (3.9 ±0.025 vpc) |
| (1.0 ±0.5 s) | |
| Reconnect Voltage | 15.2 V (3.8 ±0.05 vpc) |
|
TEMPERATURE SPECIFICATIONS |
|
|---|---|
| Discharge Temperature | -4 to 140 ºF (-20 to 60 ºC) |
| Charge Temperature* | -4 to 113 ºF (-20 to 45 ºC) |
| Storage Temperature | 23 to 95 ºF (-5 to 35 ºC) |
| *Refer to charge currents below 32°F (0°C) | |
|
COMPLIANCE SPECIFICATIONS |
|
|---|---|
| Certifications | CE (battery) |
| UN38.3 (battery) | |
| UL1642 & IEC62133 (cells) | |
| Shipping Classification | UN 3480, CLASS 9 |
PERFORMANCE CHARACTERISTICS
