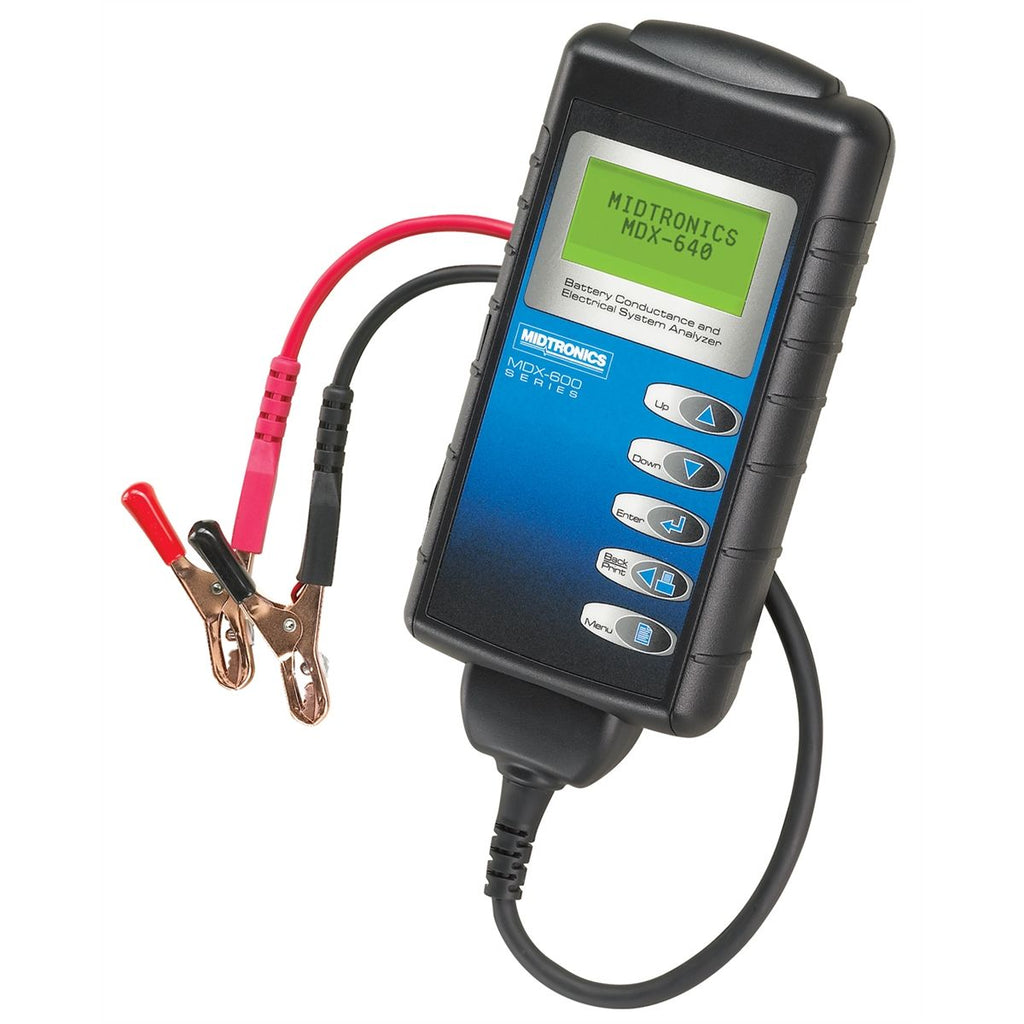

MDX-640 Midtronics Battery Conductance Analyzer 6/12V 100-2000CCA

Midtronics MDX-640 Battery Conductance Analyzer 6/12V 100–2000 CCA — Professional Automotive Battery & Electrical System Testing

The Midtronics MDX-640 is a professional-grade battery conductance analyzer designed for automotive technicians and fleet maintenance professionals. Testing 6V and 12V batteries from 100 to 2000 CCA, it delivers fast, accurate battery condition assessments using Midtronics' industry-leading conductance technology — the same technology trusted by OEMs, dealerships, and service centers worldwide.

Beyond battery testing, the MDX-640 also performs charging system and starting system analysis, making it a comprehensive electrical system diagnostic tool. Compact and lightweight at 0.6 kg, it is backed by a 12-month warranty from Midtronics.

Key Features

• 6V & 12V battery testing — covers the full range of automotive, light truck, and commercial vehicle batteries
• 100–2000 CCA range — tests standard, AGM, and high-CCA batteries including start-stop systems
• Conductance-based testing — fast, accurate, and battery-safe; no discharge required
• Charging system analysis — tests alternator output and charging system performance
• Starting system analysis — evaluates starter draw and cranking performance
• Compact and lightweight — only 0.6 kg for easy use in shop or field environments
• 12-month warranty — backed by Midtronics

Specifications

• Voltage: 6V / 12V
• CCA Range: 100–2000 CCA
• Technology: Conductance-based analysis
• Dimensions: 7.7" x 3.9" x 2" (195 x 100 x 50 mm)
• Weight: 0.6 kg
• Part/Model Number: MDX-640
• Brand: Midtronics
• Warranty: 12 months

Ideal For

• Automotive dealerships and service centers
• Fleet maintenance and management
• Independent auto repair shops
• Battery retailers and distributors
• Roadside assistance and mobile technicians
