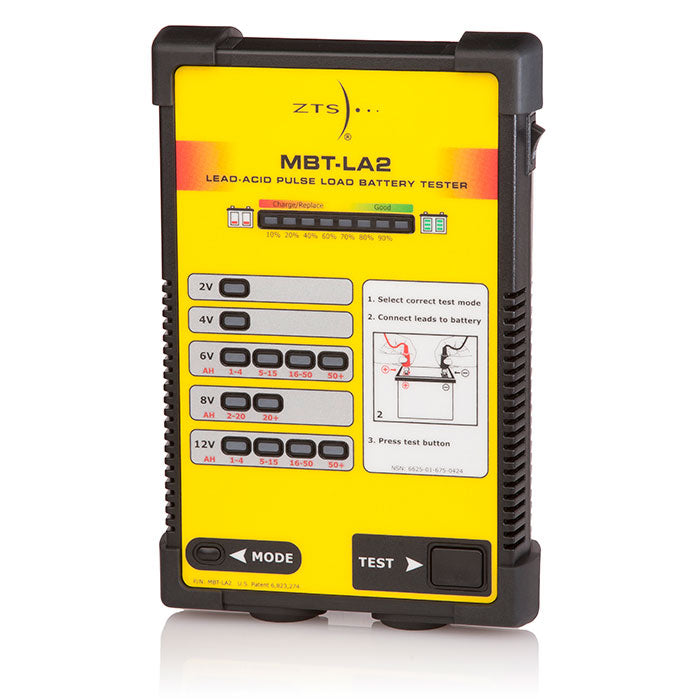

MBT-LA2 Lead Acid Multi-Battery Tester

ZTS MBT-LA2 Lead Acid Multi-Battery Tester — Patented Pulse Load Testing for SLA, AGM, Gel & Flooded Batteries

The ZTS MBT-LA2 is a professional-grade lead acid multi-battery tester that measures true battery condition and state of charge using a patented, high-accuracy pulse load test — not just voltage or internal resistance. Compatible with 2V, 4V, 6V, 8V, and 12V lead acid battery types including SLA, AGM, Gel, and Wet (flooded), it is the go-to tool for battery management professionals across UPS, fire/security, emergency lighting, medical, telecom, and industrial applications.

Made in the U.S.A. and backed by a 12-month warranty, the MBT-LA2 includes a 48" removable test lead set with solid copper clamps and the K-MBTLA2 accessory kit (soft case and hanging strap).

Key Features

• Patented pulse load test — battery-safe, non-invasive; measures performance under load for accurate condition assessment
• Multi-voltage compatibility — tests 2V, 4V, 6V, 8V, and 12V lead acid batteries across a wide Ah range
• State of charge & condition — quickly identifies weak or failing batteries before they cause system failures
• LED bar display — 8 LEDs (green/yellow/red) for easy, at-a-glance test results in ~15 seconds
• Integrated cooling fan — dissipates heat from testing; over-voltage circuit protection
• Rugged NBR rubber sleeve — impact-resistant housing for field use
• Includes accessory kit — soft case and hanging strap (K-MBTLA2) included
• Made in U.S.A. — Patents 6,823,274 & D611851

Testing Capability

• 2V: 2–25Ah
• 4V: 2–25Ah
• 6V: 1–4Ah / 5–15Ah / 16–50Ah / 51–200Ah
• 8V: 2–20Ah / 21–150Ah
• 12V: 1–4Ah / 5–15Ah / 16–50Ah / 51–200Ah

Specifications

• Part Number: MBT-LA2
• Display: 8 LED bar (green / yellow / red)
• Test duration: ~15 seconds
• Auto shut-off: 20 minutes without test activity
• Test leads: 48" rubber-coated, high strand count, solid copper clamps, R/A sheathed banana plugs
• Power: 4 x AA batteries (not included)
• Dimensions: 9.25" x 6.25" x 2.00" (235 x 158.8 x 50.8 mm)
• Weight: 0.908 kg
• Colour: Yellow
• Brand: ZTS
• Warranty: 12 months

Applications

Fire/security, UPS, emergency lighting, medical, government, industrial, military, access control, IT, telecom, manufacturing, battery management, mobility, auto/marine/RV, facility operations, utilities, inspection.

Ships from Thunder Battery — Canada's trusted energy storage dealer.
